Radome Design Impact on Antenna Array Performance

This is part 4 of a 6-part tutorial series hosted by experienced antenna engineer Katerina Galitskaya who is documenting her experience learning Nullspace as a new user. Over six tutorials she will progress from simulating a single bow-tie antenna to building full arrays and exploring beamforming techniques, sharing direct comparisons to other full-wave 3D EM simulation tools.

The full video version of this tutorial is available to watch on YouTube.

Problem Statement

This tutorial presents the modeling, simulation, and post-processing of a 4-element antenna array enclosed in a glass fiber radome. The radome effect is a crucial factor when working with antenna arrays, as it can detune the elements and reduce realized gain. The final 3D geometry is shown in Figure 1.

Fig. 1 Antenna array with a radome

Model setup

Preparation: Use the antenna array model from the third tutorial.

Units: CAD model is defined in millimeters, converted to meters during simulation.

Frequency sweep: 0.5–1.5 GHz (51 points).

Radiation data: Dense far‑field grid (2-degree step in theta and phi).

Extracted metrics: Active S-parameters, boresight gain, gain vs. frequency, 2D radiation cuts, and 3D radiation pattern.

CAD Model and Meshing

Begin by opening Prep and setting your working directory to a folder where you plan to complete this example.

Complete the modeling of a 4-element antenna array as described in the previous tutorial.
#{inner_width=1.7}

#{outer_width=30}

#{leng=42}

#{port=1.7}

#{subH=0.767}

#{subW=140}

###substrate geometry

brick x {subW} y {subW} z {subH}

volume 1 rename "substrate"

move Volume substrate z {-subH/2} include_merged

###ports geometry

create vertex {-port/2} {-port/2} 0

#{v1 = Id("vertex")}

create vertex {port/2} {-port/2} 0

create vertex {port/2} {0} {port/4}

create vertex {-port/2} {0} {port/4}

create surface vertex {v1} to {v1+3}

#{port_pos = Id("surface")}

surface {port_pos} copy reflect y

#{port_neg = Id("surface")}

###antenna geometry

create curve location {-outer_width/2} {port/2+leng} 0 location {outer_width/2} {port/2+leng} 0

#{c1 = Id("curve")}

create curve location {-outer_width/2} {port/2+leng} 0 location {-inner_width/2} {port/2} 0

create curve location {outer_width/2} {port/2+leng} 0 location {inner_width/2} {port/2} 0

create curve location {-inner_width/2} {port/2} 0 location {inner_width/2} {port/2} 0

create surface curve {c1} to {c1+3}

#{dipole_top = Id("surface")}

surface {dipole_top} copy reflect y nomesh

#{dipole_bot = Id("surface")}

project surface {port_pos} {port_neg} onto surface 1 imprint

project surface {port_pos} {port_neg} {dipole_top} {dipole_bot} onto surface 2 imprint

###ground plane

create surface rectangle width 300 zplane

#{GND = Id("surface")}

#{gnd_H=70}

move Volume 6 z {-gnd_H} include_merged preview

move Volume 6 z {-gnd_H} include_merged

###4-element array creation

Volume 1 2 3 4 5 6 copy move x 0 y 170 z 0 repeat 3 group_results

unite surface {GND} 36 53 70

#{GND = Id("surface")}

Import the STEP file for the radome. Ensure that the file path is correctly specified.

import step "INSERT PATH HERE/radome.step" heal group "radome" ### importing step file of the radome

#{radome = Id("volume")} ### getting a variable for the radome volume ID

move volume {radome} y -170 include_merged #### center the radome to array geometry

rotate Volume all angle 90 about Y include_merged preview

rotate Volume all angle 90 about Y include_merged

imprint all

merge all

Materials & Voltage Sources

Use the material.py script to define the material library. In this example, we add glass fiber to the existing materials (FR-4 and PEC). Open the Nullspace EM environment and load the material.py file before assigning materials.

from nsem import *

ml=MaterialLibrary()

ml.add_material(Material('FR-4', 'green', MaterialProperty('constant',real=4.4, losstan=0.02), MaterialProperty('constant',real=1.0, imag=0.0)))

ml.add_material(Material('glassfiber', 'grey', MaterialProperty('constant',real=4.7, losstan=0.09), MaterialProperty('constant',real=1.0, imag=0.0)))

ml.save('materials')

Assign materials and define four voltage sources. Ensure consistent assignment of positive and negative terminals across all ports.

nsem load material library 'materials.h5'

nsem assign volume substrate material 'FR-4' ###the original substrate

nsem assign volume 7 13 19 material 'FR-4' ###the 3 copies

nsem assign volume {radome} material 'glassfiber' ### glass fiber material to the radome

nsem assign surface {dipole_top} {dipole_bot} material 'PEC' ###the original antenna

nsem assign surface 34 35 36 51 52 53 68 69 70 material 'PEC' ###the 3 copies

nsem voltage source 'port_001' pos surface {port_pos} neg surface {port_neg} impedance 50

nsem voltage source 'port_002' pos surface 32 neg surface 33 impedance 50

nsem voltage source 'port_003' pos surface 49 neg surface 50 impedance 50

nsem voltage source 'port_004' pos surface 66 neg surface 67 impedance 50

nsem assign surface {GND} material 'PEC'

Meshing

Repeat the meshing as shown in the previous tutorial. Use lambda/10 meshing for the radome part.

###meshing

surface all scheme pave

#{mesh=0.3/1*1000/10}

group 'feed' add surface {port_pos} {port_neg} 32 33 49 50 66 67

curve common_to surface in feed interval 1

mesh surface in feed

surface {dipole_top} {dipole_bot} 34 35 51 52 68 69 size {mesh/4}

mesh surface {dipole_top} {dipole_bot} 34 35 51 52 68 69

surface 14 16 17 18 size {mesh/4}

mesh surface 14 16 17 18

surface {GND} size {mesh/1.5}

mesh surface {GND}

surface not is_meshed in volume 1 7 13 19 size {mesh/4}

mesh surface not is_meshed in volume 1 7 13 19

surface not is_meshed in volume {radome} size {mesh}

mesh surface not is_meshed in volume {radome}

block 1 surface all

#save cub5 "radome_array.cub5" overwrite journal

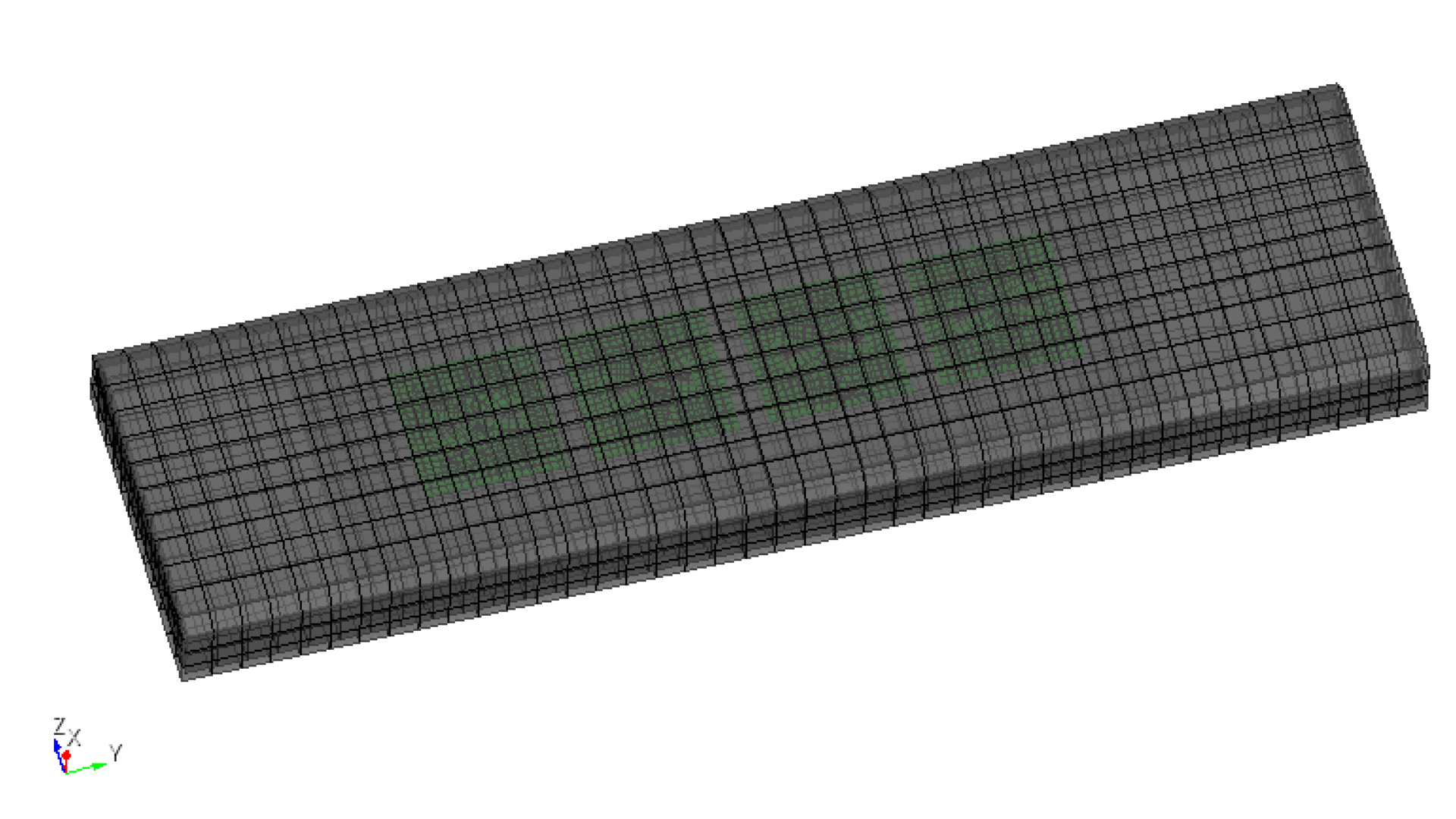

Fig.2 Model with the final mesh.

Simulation Setup

Create a simulation.py file to configure the simulation parameters.

from nsem import *

import numpy as np

config = 'radome_array'

model = Configuration(f'{config}_sim') #configure simulation name

model.set_cub5_filename(f'{config}.cub5') #load the mesh file

model.set_order(1) #set basis order, default is 1

model.set_model_scale(0.001) #convertion to mm

model.set_frequencies(freq_beg=0.5, freq_end=1.5) #set frequency sweep from 0.5 to 1.5 GHz

model.save()

report = Report(f'{config}_report', f'{config}_sim') #create a report object

report.set_frequencies(np.linspace(0.5, 1.5, 11))

step = 2 #set the step for theta and phi angles

theta_scan = np.linspace(0, 180, int(180/step+1)) #theta angles from 0 to 180 degrees

phi_scan = np.linspace(0, 360, int(360/step)) #phi angles from 0 to 360 degrees

report.request_far_fields_grid(theta_scan, phi_scan) #request far-field data

report.save() #save the report configuration

model.run() #run the simulation

report.run() #run the report generation

Post-Processing

Create postprocessing.py to extract simulation data and visualize results.

import matplotlib.pyplot as plt

import numpy as np

from nsem.postprocessing import *

from scipy.interpolate import CubicSpline

config = 'radome_array'

post = PostProcess(f'{config}_sim')  # create a post-processing object for the simulation

freq = post.get_frequencies()  # get the frequencies

freq = np.linspace(np.min(freq), np.max(freq), 501)  # create a frequency array for evaluation

w = [1.0, 1.0, 1.0, 1.0] # excitation of each port

active_s = post.get_active_s_parameters(freq_evaluate=freq,weights=w)

active_s11 = dB20(np.squeeze(active_s[0, :]))

active_s22 = dB20(np.squeeze(active_s[1, :]))

active_s33 = dB20(np.squeeze(active_s[2, :]))

active_s44 = dB20(np.squeeze(active_s[3, :]))

#plots

fig = plt.figure(figsize=(18, 6))

ax1 = plt.subplot(1, 3, 1)

ax2 = plt.subplot(1, 3, 2)

ax3 = plt.subplot(1, 3, 3, polar=True)

# active S-parameters

ax1.plot(freq, active_s11, label='active S11', color='blue')

ax1.plot(freq, active_s22, label='active S22', color='orange')

ax1.plot(freq, active_s33, label='active S33', color='green')

ax1.plot(freq, active_s44, label='active S44', color='red')

ax1.set_xlabel('Frequency (GHz)')

ax1.set_ylabel('S11 (dB)')

ax1.set_title('Active S-parameters')

ax1.grid(True)

ax1.legend()

Fig. 3 Active S11 for each port

post = PostProcess(f'{config}_report')  # create a post-processing object for the report

freq = post.get_frequencies()

theta = post.get_obs_theta()

phi = post.get_obs_phi()

gain = post.get_gain('spherical',weights=w)  #get gain with specified amplitude/phase distribution

theta_idx,_ = post.get_nearest(theta, 0.0)

phi0_idx,_  = post.get_nearest(phi, 0.0)

phi90_idx,_  = post.get_nearest(phi, 90.0)

theta90_idx,_ = post.get_nearest(theta, 90.0)

theta0_idx,_ = post.get_nearest(theta, 0.0)

freq_idx,_ = post.get_nearest(freq, 1.0)

gain_0 = gain[phi0_idx, theta90_idx, 0, freq_idx, 1]

print(f"Boresight gain (dBi): {gain_0:.2f}")

gain_copol_phi0  = gain[phi0_idx, :, 0, freq_idx,1]

gain_copol_phi90 = gain[phi90_idx, :, 0, freq_idx, 0]

gain_xpol_phi0   = gain[phi0_idx, :, 0, freq_idx, 0]

gain_xpol_phi90  = gain[phi90_idx, :, 0, freq_idx, 1]

gain_copol_theta90 = gain[:, theta90_idx, 0, freq_idx, 1]

gain_xpol_theta90  = gain[:, theta90_idx, 0, freq_idx, 0]

#Gain plot interpolation

gain_max = np.squeeze(gain[phi0_idx, theta90_idx, 0, :, 1])

x = np.asarray(freq).ravel()

y = np.asarray(gain_max).ravel()

x_unique, idx = np.unique(x, return_index=True)

y_unique = y[idx]

cs = CubicSpline(x_unique, y_unique, bc_type='natural', extrapolate=False)

x_dense = np.linspace(x_unique[0], x_unique[-1], 501)

y_dense = cs(x_dense)

# Gain vs frequency

ax2.plot(x_dense, y_dense, label='Gain with radome', color='blue')

ax2.set_xlabel('Frequency (GHz)')

ax2.set_ylabel('Gain (dBi)')

ax2.set_title('Boresight Gain vs Frequency')

ax2.grid(True)

ax2.legend()

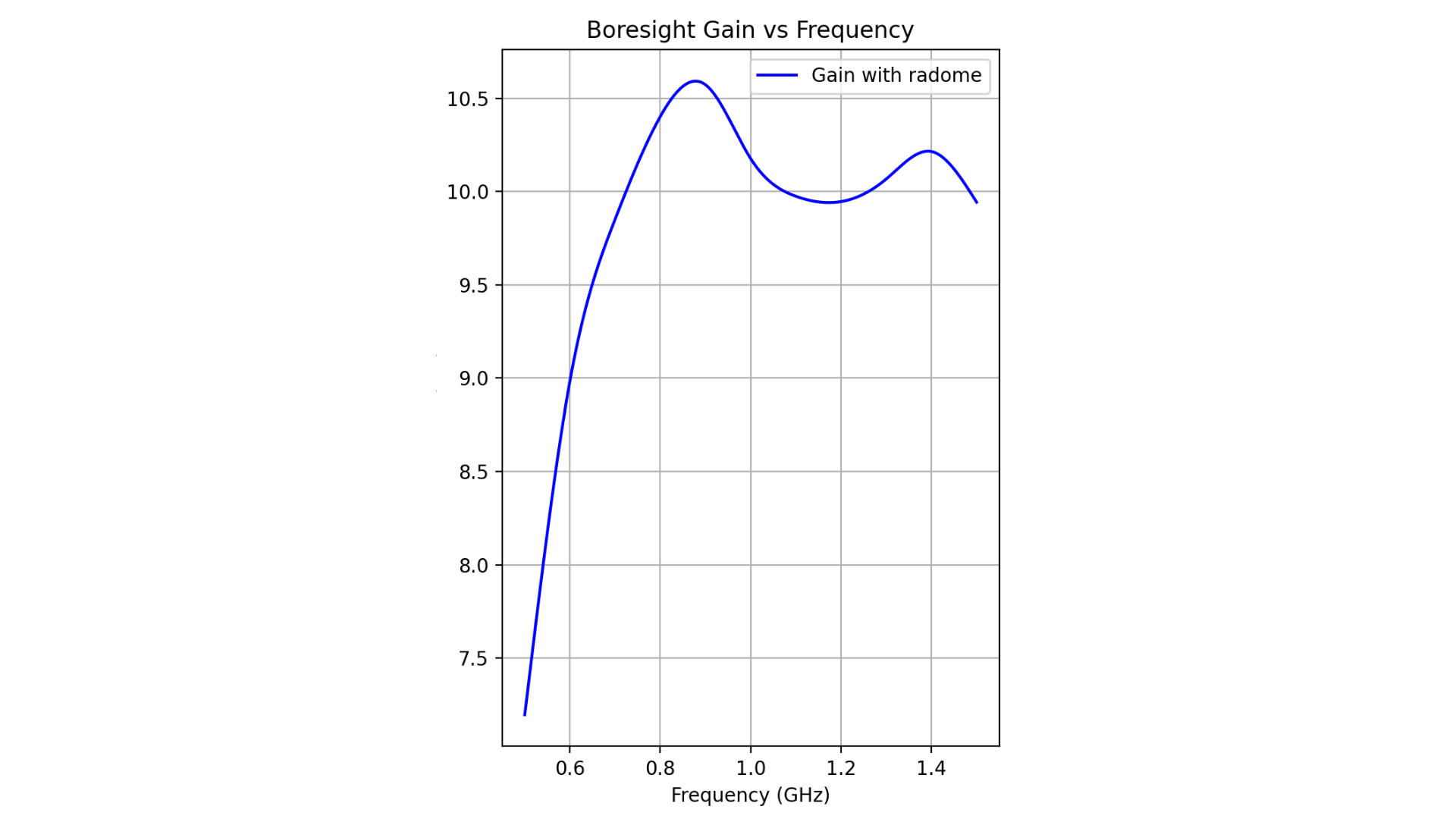

Fig. 4 Boresight gain over frequency

# Elevation cut

ax3.plot(np.deg2rad(phi), gain_copol_theta90, label=f'Co-pol theta=90°', color='green')

ax3.set_xlabel('phi (deg)')

ax3.set_ylabel('Gain (dBi)')

ax3.set_title('Elevation Cuts')

ax3.grid(True)

ax3.legend()

fig.tight_layout()

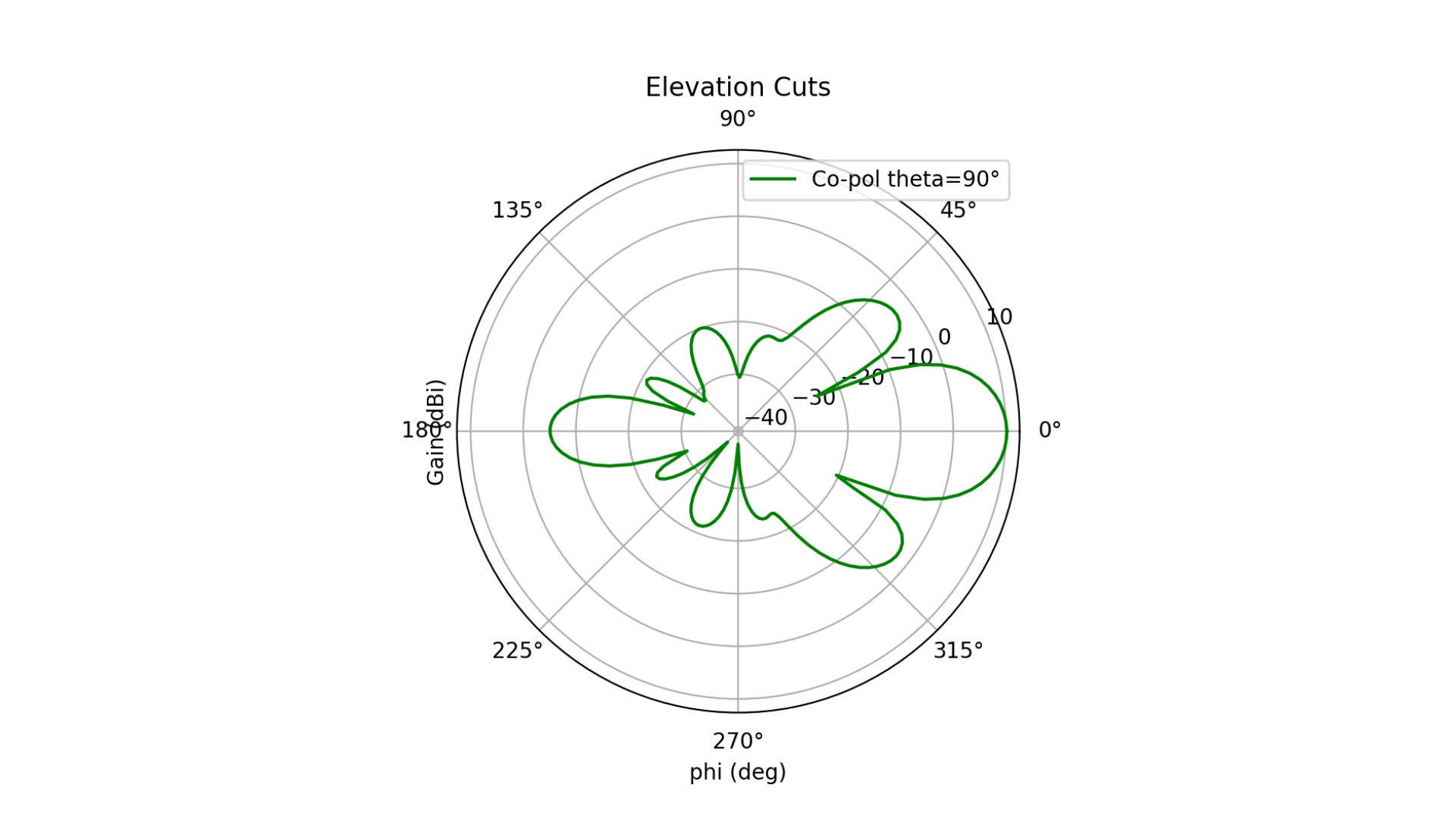

Fig. 5 Gain plot along phi, theta = 90

#3D radiation pattern

fig3d,ax3d = post.plotPolar3D(gain[:,:,0,freq_idx,1], -20.0,20.0)

fig3d.show()

plt.show()

Fig. 6 3D gain pattern
